48 Series Hydraulic Hose Crimp Fittings

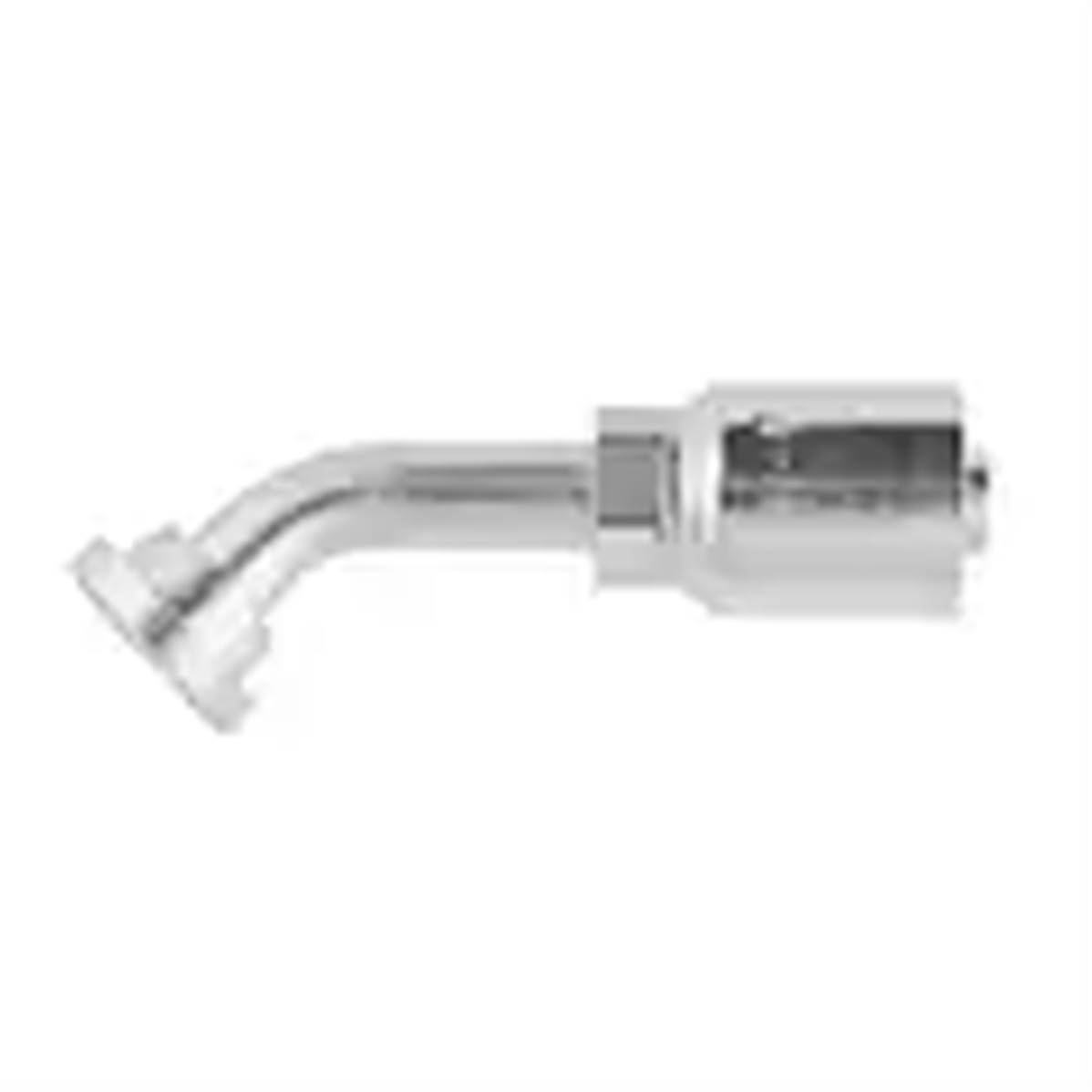

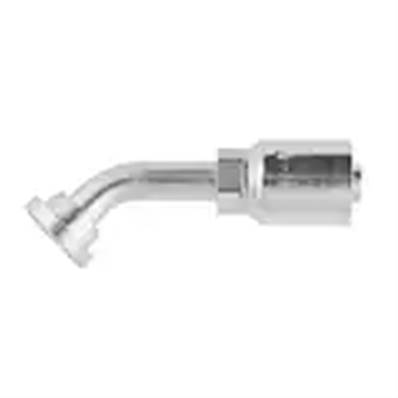

PARKER BR3 3/4 - 45° Crimp Fitting - 48 Series
Parker's 48 Series high pressure hydraulic hose fittings offer high performance, fast assembly and design flexibility of over 500 configurations.
Technical Specifications
Material:Steel Hose I.D. (Size):3/4
Style:SAE Code 61 Flange Port Connection:3/4
Shape:45° Elbow Connection Thread Size:na
Flange Size:3/4 inch Hose Inside Diameter:3/4 inch
Materials Used:Steel Port Size:3/4 inch
Shape:45° Elbow Product Style:SAE Code 61 Flange Head
Hex Locknut Size:na Banjo Port Diameter:na
Hose I.D. (Size):-12 Hex Nut Size:na
Product Information
Parker Hannifin Series 77 Crimp Hydraulic Hose Fittings are economical, permanent, bite-the-wire fittings for high pressure applications. Designed for use with Parkrimp crimpers, Series 77 ferrules require less insertion force and are easy to assemble. Their compact, one-piece construction provides better value, improved flow, reduced heat and pressure losses, and reduced complexity. Compatible with a wide range of constant working pressure hoses, Series 77 ferrules are designed to provide you with efficiency, safety and performance. When coupled with Parker No-Skive hose, Series 77 ferrules can be assembled without removing the outer covering of the hose. Available in a variety of materials and a wide range of end configurations, Series 77 ferrules are offered in diameters ranging from ¼-inch to 2-inch.
Features/Benefits:
•Metric Hex
•Low connection force
•A variety of materials available, including steel and stainless steel
•A wide range of threads
•Simpler, better sealing one-piece system
•No-Skive technology ensures easy, efficient and safe production processes
Applications:
•Petroleum-based hydraulic oils and lubricating oils
Compatible hoses:
•387 (-20 to -32 only)
•487 (-20 to -32 only)
•787 (-8 to -32 only)
•797 (-8 to -32 only)
Parker Part Number: 11777-12-12
